EWB25000LBS SYNTHETIC ROPE WINCH 25000LBS 24V

Recovery Equipment

24v
25000LBS
Runva
Synthetic Rope
Winch
Winch-In

R28 995,00

Incl. Vat

Brand

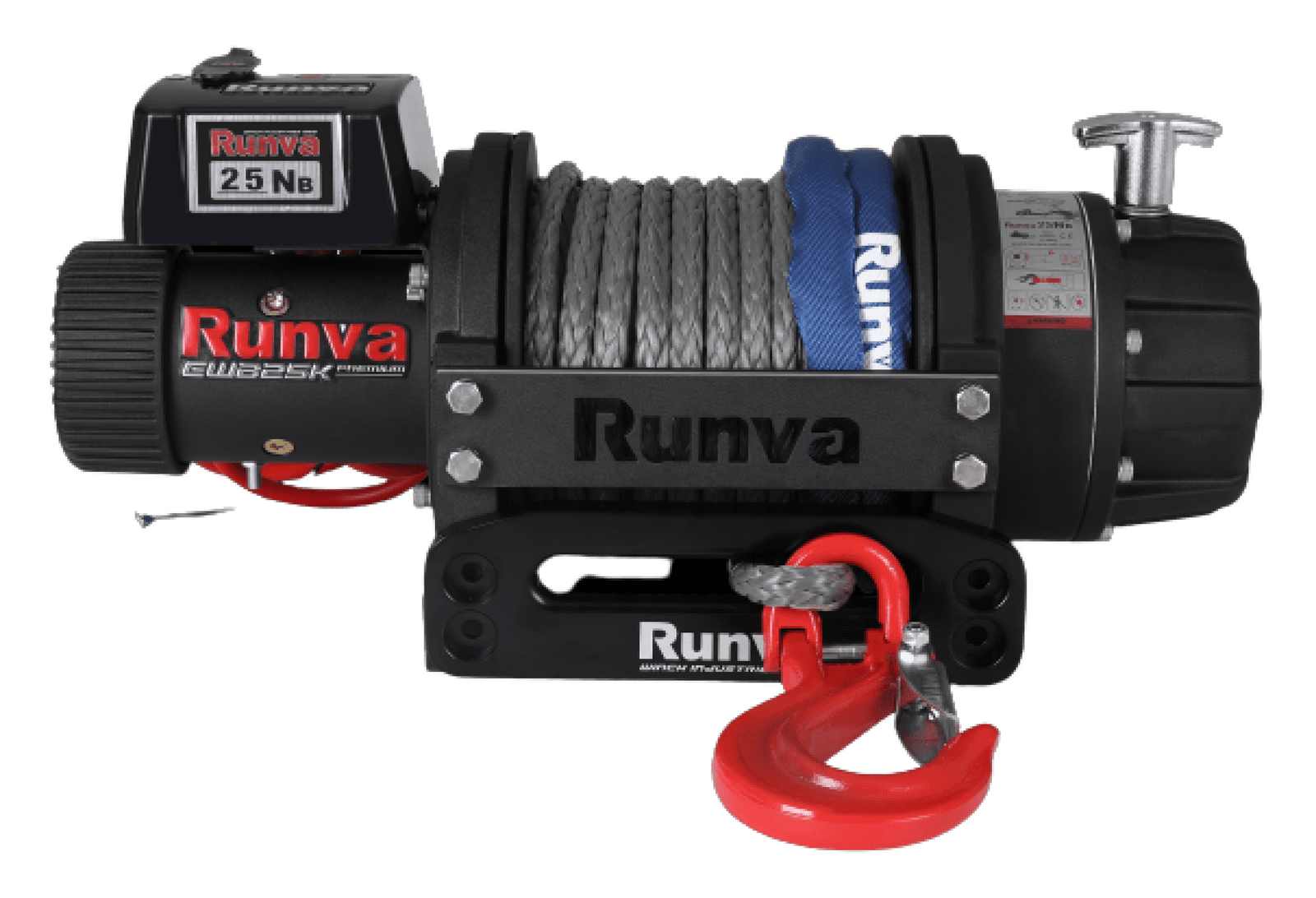

Engineered for extreme recovery operations, the EWB 25000LBS Synthetic Rope Winch delivers exceptional pulling power and reliability for heavy-duty applications. Designed with precision engineering and robust materials, this winch ensures consistent performance in demanding off-road and industrial conditions.

Technical Specifications:

  • Rated Line Pull: 25,000 lbs (11,340 kg)

  • Motor: 24V Series Wound; Input 6.1 kW / 8.2 hp; Output 3.1 kW / 4.2 hp

  • Gear System: 3-Stage Planetary Steel Gear, 450:1 Reduction Ratio

  • Brake: Patented Ratchet-Pawl Design for Maximum Load Holding

  • Waterproof Rating: IP67 – Fully Sealed for Dust and Water Resistance

  • Rope: Synthetic Ø13.8 mm × 26.5 m

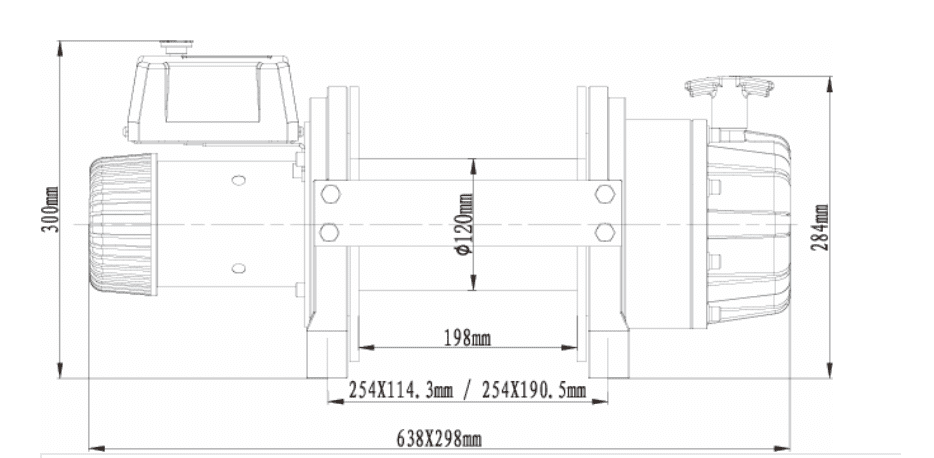

  • Drum Size: Ø120 mm × 198 mm

  • Mounting Bolt Patterns: 254 × 114.3 mm / 254 × 190.5 mm

  • Net Weight: 99.5 kg

Performance (12V DC – First Layer):

  • No Load: 30.5 ft/min (9.3 m/min) at 23A

  • Full Load (25,000 lbs): 3.9 ft/min (1.2 m/min) at 280A

The EWB 25000LBS winch combines high torque output, efficient power management, and advanced sealing technology to withstand extreme environments. Its heavy-duty construction and synthetic rope ensure reduced weight, corrosion resistance, and superior safety during recovery operations.

SKU: RWEWB25000S24V
